Explore MicroCMS’ Remarkable Features.
Indulge in a Comprehensive Cabin Electronics Package within a single integrated system.
Access a Diverse Array of Applications and Content.
Effortlessly Control All Your Cabin Management Functions.
Immerse Yourself in 4K Inflight Entertainment.
Stay Connected via 802.11 AX Cabin Wireless.
Set the Ambiance with Cabin Lighting Control.
Stay Powered with Convenient In-Seat Power.
Connect to 5G Cellular Networks for Cloud Access on the Ground.
Tailor Your Experience with Intuitive Customization.
Redefining In-Flight Entertainment.
Our Cabin Entertainment Server stands as a pinnacle of innovation, seamlessly combining high-performance capabilities and an integrated 802.11ax cabin wireless system, offering a complete In-Flight Entertainment (IFE) solution within a compact package.
Ample Storage: With a substantial 2TB of NVME storage, our server provides ample space for an extensive library of content, including movies, music, maps, and diverse applications, catering to passengers’ entertainment desires.
5G Connectivity: The integrated 5G cellular modem ensures cost-effective ultra-high-speed internet access. This not only facilitates automatic updates of media and software but also enables remote troubleshooting, ensuring your system remains up to date and fully operational.
Open Platform Linux Server: Operating as an open platform Linux server, it can host a wide range of custom software applications, accommodating diverse data types, moving map applications, audio, video, HTML5 content, and various web service files.
Flight Data Integration: Our server can directly read and decode aircraft flight data from avionics systems, making this data available for use by custom applications, enhancing the functionality of your aircraft’s systems.
Customizable Inputs: With four customizable discrete inputs, the server can be tailored to integrate seamlessly with your specific requirements.
DRM Support: Engineered to support advanced Digital Rights Management (DRM) implementations, ensuring content security and compliance with copyright regulations.
Interfaces:
ARINC 429 Inputs
Discreet Inputs
Stereo Audio Output
Digital Audio Output
HDMI 2.0 Port
HD SDI Port
USB 3.0 Port
1Gbps Ethernet Ports
802.11 AX Wireless Access Point
5G Cellular Modem
5.0” x 8.0” x 1.9”
< 1.5 Lb.
< 1.0 amps
Experience the future of In-Flight Entertainment with our Cabin Entertainment Server, where performance, connectivity, and customization converge to redefine your passenger experience.
Revolutionizing In-Flight Entertainment.
Introducing our state-of-the-art, ultra-thin 4K smart display, the All-in-One Monitor, designed to redefine the in-flight entertainment experience:
4K Ultra High Definition OLED Screen: Immerse yourself in the brilliance of a 4K Ultra High Definition OLED screen, offering vivid and true-to-life colors, regardless of your cabin environment or seating location.
Integrated Cabin Entertainment Server: Our monitor integrates the powerful Cabin Entertainment Server with its integrated 802.11ax cabin wireless system, creating a self-contained single unit In-Flight Entertainment (IFE) system. With an integral 5G cellular modem, it provides cost-effective internet access, enabling automatic updates and remote troubleshooting keeping your system current and content fresh.
Ample Storage: The monitor offers an impressive 2TB of NVME storage, providing ample space for storing an extensive library of content, including movies, music, maps, and various applications.
Open Platform Linux Server: Operating as an open platform Linux server, the monitor can host a wide array of custom software applications, moving map applications, audio, video and HTML5 content.
Flight Data Integration: The monitor reads and decodes aircraft flight data from avionics systems and offers four customizable discrete inputs, allowing tailored integration to meet your specific requirements.
DRM Support: Our monitor’s design supports Digital Rights Management (DRM) implementations, ensuring content security and compliance with copyright standards.
Experience the future of in-flight entertainment with our All-in-One Monitor, where cutting-edge technology converges to elevate your passenger experience.
24” All in One Monitor
22.0” x 15.2” x .25/1.0”
3.8 Lb.
< 1.8 amps
27” All in One Monitor
24.0” x 15.7” x .25/1.0”
4.8 Lb.
< 2.1 amps
Interfaces:
ARINC 429 Inputs
Discreet Inputs
Stereo Audio Output
Digital Audio Output
HDMI 2.0 Output
HD SDI Output
USB 3.0 Port
1Gbps Ethernet Port
802.11 AX Wireless Access Point
5G Cellular Modem
Cutting-Edge Monitor Features.
RAJCO’s monitors are equipped with advanced features that redefine the in-flight visual experience:
4K Smart Monitors: Each monitor boasts a stunning 4K smart display, ensuring passengers enjoy exceptional visual clarity and detail.
Smart Monitors: All monitors include an internal full system computer that drives these monitors, ensuring efficient video decoding and playback plus a host of customizable interactive applications.
Internal Media Storage: Built-in 2 TB of storage allows for the distribution of media content, ensuring seamless access to entertainment options.
Touch Screen Interface: For added convenience, an optional touchscreen interface is available, enhancing user interaction and control.
Wireless Connectivity: Wi-Fi and Bluetooth capabilities enable wireless connectivity for data transfer and external device pairing.
Audio Playback: The internal media player decodes audio tracks and offers multiple output options, including stereo and digital surround sound ports, as well as Bluetooth connectivity.
Control Flexibility: Monitor controls are accessible through the flight attendant application or via a Wi-Fi connection, providing flexible management options.
Bulkhead Monitors
24” Monitor
22.0” x 13.2” x .25/1.0”
3.1 Lb.
< 1.5 amps
27” Monitor
24.0” x 13.7” x .25/1.0”
4.0 Lb.
1.9 amps
In-seat and Galley Monitors
13” Monitor
12.5” x 7.5” x .75”
2.4 Lb.
< 1.2 amps
16” Monitor
14.4” x 9.0” x .75”
2.7 Lb.
< 1.3 amps
Sidewall Monitors
10” Monitor
10.0” x 6.9” x .2”
<.5 Lb.
N/A
12” Monitor
10.7” x 7.4” x .2”
<.5 Lb.
N/A
Electronics Unit
1.5” x 2.1” x .75”
<.5 Lb
< 1.3 amps
Discover a World of Passenger Interfaces with MicroCMS.
Personal Devices: MicroCMS effortlessly connects with passengers through their personal smartphones, tablets, or laptops. By simply joining the onboard Wi-Fi network, you gain access to a vast array of entertainment content and services through standard web browsers.
Touchscreen Monitors: Immerse yourself in the world of entertainment with our high-resolution touchscreen monitors. These displays offer an extensive selection of movies, music, flight information, and more, all at your fingertips.
Touchscreen Controllers: Experience innovation at its best with our touchscreen controllers. These devices feature full HD high-resolution, full-color screens with high brightness and capacitive multi-touch interfaces. Each controller provides a fully customizable graphic interface and is equipped with Wi-Fi and Bluetooth capabilities, ensuring an engaging and interactive experience.
Rotary Controllers: Discover the perfect harmony of tactile feedback and touchscreen convenience with our rotary controllers. These cutting-edge devices seamlessly combine a physical rotary knob with an interactive LCD, allowing you to make precise adjustments effortlessly and swiftly.
With a range of interface options, MicroCMS promises a highly personalized and enjoyable entertainment journey during your flight. We cater to your unique preferences, enhancing your in-flight experience with an abundance of choices. Welcome to the future of in-flight entertainment!
Touchscreen Controllers
2.9” x 4.9” x .75”
.2 Lb.
< .3 amps
Rotary Controllers
2.9” x 4.9” x .75”
.2 Lb.
< .3 amps
Tactile Switches
Designed on demand
for specific requirements.
Seamless Integration of Passenger-Supplied Media.
MicroCMS offers a multitude of avenues for interfacing and utilizing passenger-supplied media and content, ensuring a versatile and enriched in-flight entertainment experience:
DVD Drive Connectivity: A DVD drive uniquely connects to any MicroCMS unit’s processor or personal device, allowing seamless access to the media content stored on the DVD disk.
4K Video Stream Import: MicroCMS can import 4K video streams through its HDMI port and preset them for streaming to any connected device, including personal devices. This ensures an immersive visual experience with stunning clarity and detail.
USB Device Integration: Media stored on USB devices can be seamlessly integrated and played through the USB Port. This includes the capability for software and media uploads, data downloads, and media playback. When a USB storage device is connected to the USB Port, the system automatically scans the device for any playable media, making it immediately available to all connected devices, including personal devices.
Experience the convenience and versatility of MicroCMS, where passenger-supplied media effortlessly integrates into your in-flight entertainment, providing a customized and engaging experience.
DVD Drive
6.2” x 6.2” x 1.1”
< .5 Lb.
< .5 amps
HDMI Port
3.0” x 4.0” x 1.1”
< .5 Lb.
< .5 amps
USB Port
3.0” x 4.0” x 1.1”
< .5 Lb.
< .5 amps
Ethernet Port
1.0” x 1.5” x 1.5”
< .1 Lb.
Streamlined Connectivity for Optimal Performance.
Our MicroCMS Ethernet Switches serve as a centralized connection point for all MicroCMS components, offering a simple and efficient solution for your in-flight entertainment system:
High-Speed Data Transfer: These switches provide a high-speed connection for the swift transfer of commands and data among various MicroCMS components, ensuring seamless and responsive performance.
Redundant Configuration for Large Aircraft: In cases where large aircraft configurations require multiple switches, they are interconnected via a redundant 10GB/sec fiber loop, guaranteeing reliability and redundancy in data transfer.
Versatile Port Configurations: Our MicroCMS Ethernet Switches are available in configurations of 8, 16, or 24 ports, offering versatility to meet your specific requirements.
Power over Ethernet (PoE) Capability: These switches can be equipped with Power over Ethernet (PoE) capability, streamlining system wiring and simplifying installation processes. Our PoE sources, including PoE+ PSE, efficiently provide power to both PoE and PoE+ devices, enhancing network efficiency and effectiveness.
Experience the power of MicroCMS Ethernet Switches, where connectivity meets performance for your in-flight entertainment system.
8 Port Switch
8 Port Switch
2 ea – 10 GB Ports
8 ea – 1 GB Ports
3.5” x 3.5” x 1.5”
<1.0 Lb.
< .5 amps @ 28 vdc
8 Port PoE Switch
2 ea – 10 GB Ports
8 ea – 1 GB Ports
3.5” x 5” x 2”
< 1.5 Lb.
< 4.0 amps @ 115 vac 400 Hz
16 Port Switch
16 Port Switch
2 ea – 10 GB Ports
16 ea – 1 GB Ports
7.5” x 3.5” x 1.5”
<1.0 Lb.
< .5 amps @ 28 vdc
16 Port PoE Switch
2 ea – 10 GB Ports
16 ea – 1 GB Ports
7.5” x 5” x 2”
< 1.75 Lb.
< 6.0 amps @ 115 vac 400 Hz
24 Port Switch
24 Port Switch
2 ea – 10 GB Ports
24 ea – 1 GB Ports
13” x 3.5” x 1.5”
<1.0 Lb.
< .5 amps @ 28 vdc
24 Port PoE Switch
2 ea – 10 GB Ports
24 ea – 1 GB Ports
3.5” x 5” x 2”
< 2.0 Lb.
< 9.0 amps @ 115 vac 400 Hz
Bridging Communication Gaps – Interfacing with Others.
Our External Interface Unit stands as a versatile protocol translation tool, meticulously designed to facilitate smooth and efficient communication and control between the MicroCMS, aircraft systems, and third-party platforms.
At its heart, the External Interface Unit features a System-on-Module (SOM) that plays a central role in the translation of messages and data, enabling seamless communication among diverse systems. This unit demonstrates compatibility with multiple physical layer protocols and harnesses a suite of translation applications to efficiently convert and transmit data and messages. This ensures robust interoperability across different systems, fostering effective communication and control.
Experience the power of the External Interface Unit, where communication barriers are eliminated, and systems seamlessly collaborate to enhance your in-flight experience.
5.2” x 3.5” x 1.9”
< 3 Lb.
< 1.5 amps
Interfaces:
RS 232
RS 429
RS 485
Can Bus
Multiple Relays
Digital Potentiometers
Enhance Your Onboard Ambiance.
Discover the transformative power of our Cabin Lighting System, designed to elevate your in-flight ambiance to perfection:
Full Control: Enjoy complete control over your lighting environment, allowing you to create the ideal atmosphere for your journey.
RGBW LED Lights: Harness the versatility of RGBW LED lights, offering a wide range of lighting options to suit your preferences.
Mood Lighting: Set the mood with customizable lighting configurations, enhancing the comfort and ambiance of your cabin.
Seamless Transitions: Effortlessly transition between different lighting settings, ensuring a smooth and enjoyable experience for passengers.
Custom Colors: Personalize your cabin with an extensive palette of custom colors, allowing you to tailor the environment to your unique style.
Enhance your in-flight experience with our fully customizable Cabin Lighting System, where ambiance is at your fingertips, and every journey becomes a memorable one.
Lighting Controller
5.2” x 3.5” x 1.9”
< 3 Lb.
< 8 amps

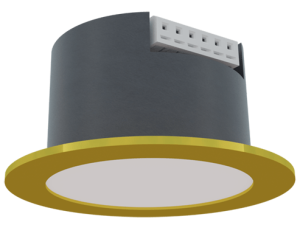

Can Light
1.5” x 1.0”
<.25 Lb.
N/A
Strip Light
TBD x .5” x .25”
<.1 oz per inch
N/A
Seamless Access to Power Right at Your Fingertips.
Say goodbye to the hassles of drained devices and limited productivity during your flights. Our state-of-the-art system ensures that your laptops, tablets, smartphones, and other essential gadgets stay charged throughout your journey, allowing you to work, communicate, and be entertained without interruption. Whether you’re closing deals, staying connected with your team, or simply enjoying in-flight entertainment, our in-seat power system is designed to exceed your expectations. Embrace the next level of comfort and productivity in the skies.
In-seat AC Power
Input – 115v 400 hz
Output – 3 ea 115v 60 hz
– 3 ea USB-C – 60 w
In-seat DC Power
Input – 28 vdc
Output – USB-C – 60 w
Installation Efficiency at Its Core.
Our design philosophy places efficiency and rapid implementation at the forefront:
Rapid Lead Times: Our design supports exceptionally short lead times, ensuring quick project initiation and completion.
Software-Driven Configuration: System configuration is seamlessly managed through software, simplifying the setup process and reducing manual intervention.
Efficient Hardware Design: Hardware design is optimized for swift execution, minimizing delays in installation.
Effortless Unit Deployment:
Automatic Unit Location and Addressing: Each unit is automatically located and addressed, streamlining installation and eliminating manual configuration.
Plug-and-Play: With a ‘plug-and-play’ approach, simply connect the units, and the software takes care of the rest, minimizing installation complexity.
Simplified System Setup:
No Special Software Required: Our system configuration database eliminates the need for special software, ensuring a straightforward setup process.
Operational Database Control: Functionality is controlled through operational databases, reducing complexity and facilitating system control.
Efficient Installation Design: A hub-based design minimizes the need for extensive wire runs, simplifying the installation process.
Standard Harnesses and Connectors: Industry-standard harnesses and connectors reduce costs while maintaining reliability.
Efficient Installation: Fewer harnesses translate to reduced man-hours, optimizing the efficiency of the installation process.
Optimal Placement: Smaller units simplify the search for ideal locations, ensuring a seamless and efficient setup.
Our design philosophy ensures a smooth and efficient installation process, enabling you to enjoy the benefits of our technology without unnecessary costs or delays.
